GQ-C60 Series · Pre-Mix 2nd

No Error Code 1-4

Recirculation doesn't start, Pump doesn't operate

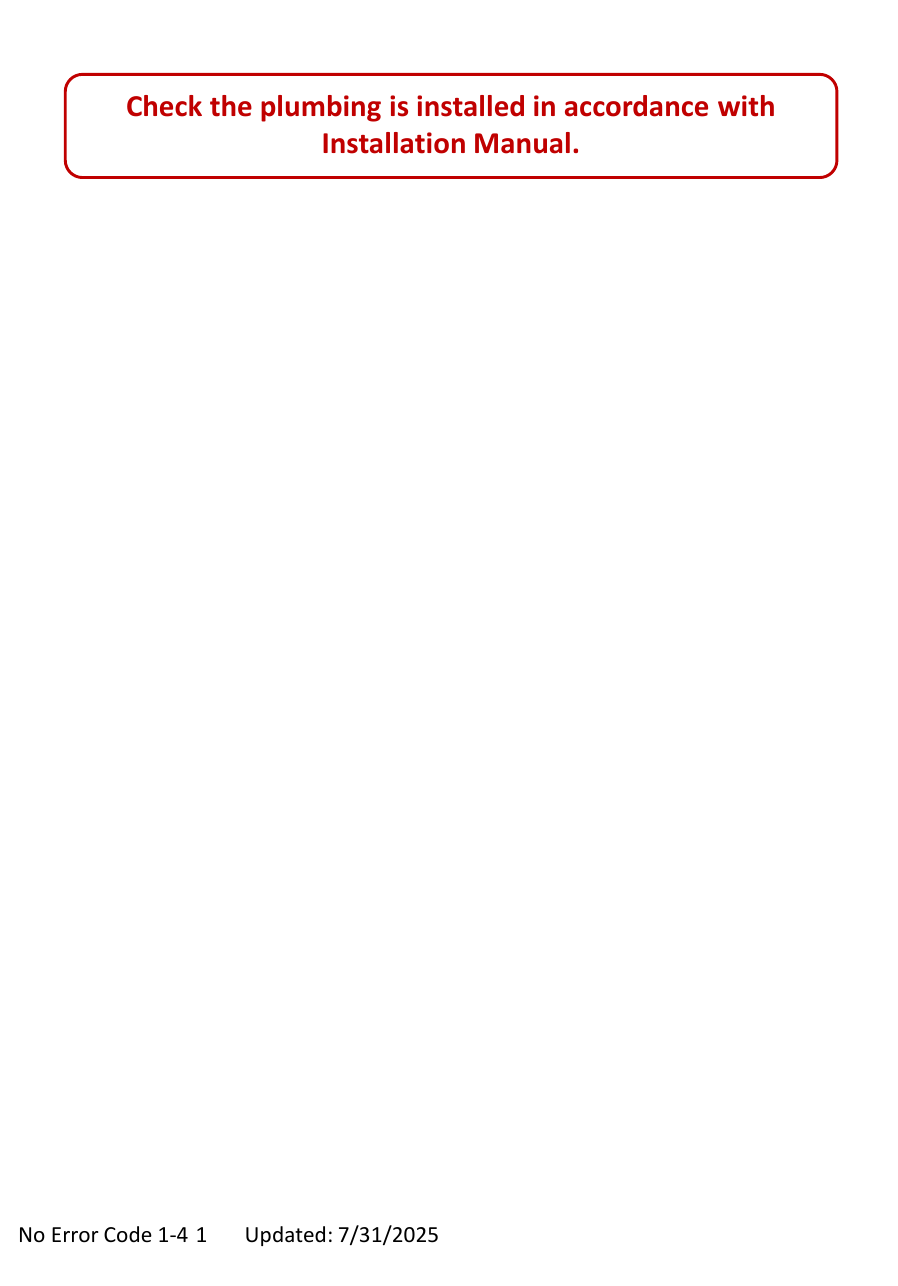

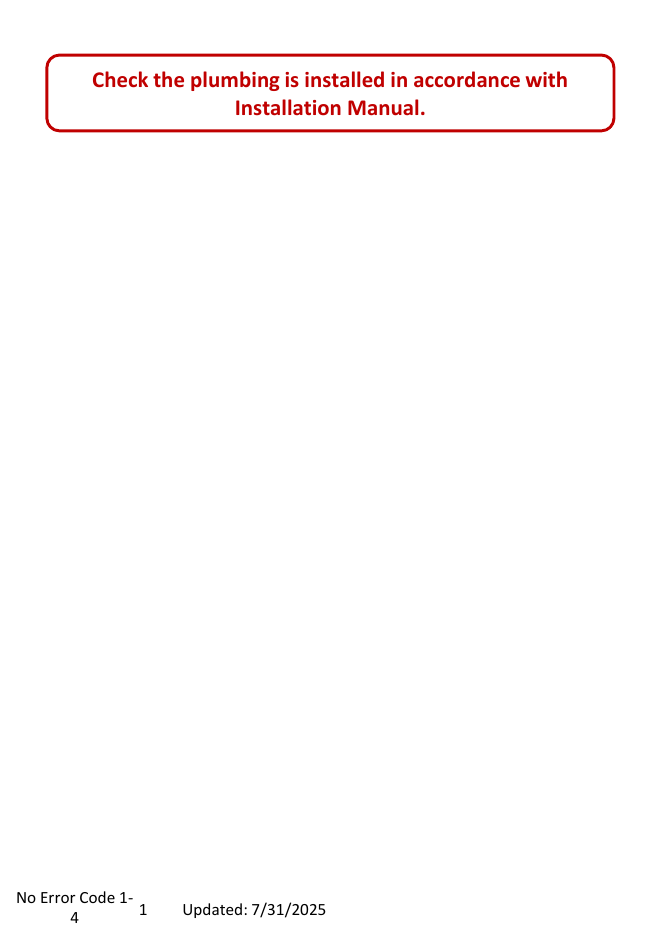

Step 1

Step 1

Normal Abnormal

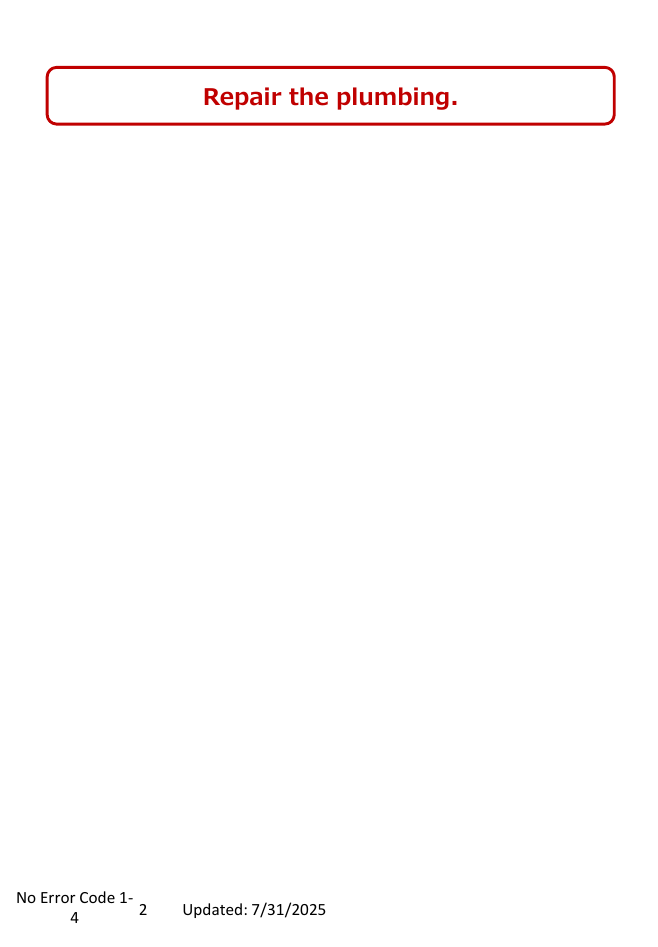

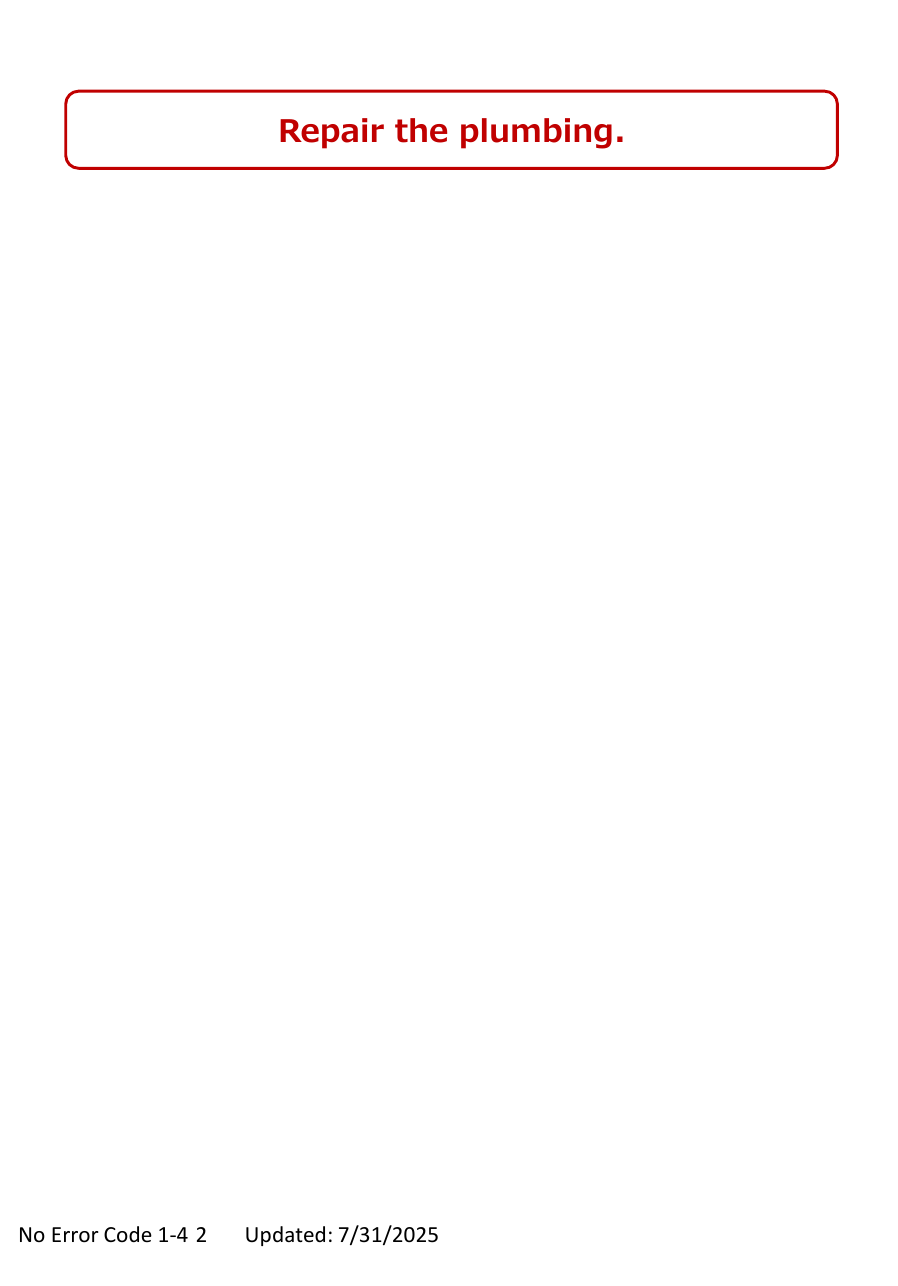

Step 2

Step 2

Return to Start

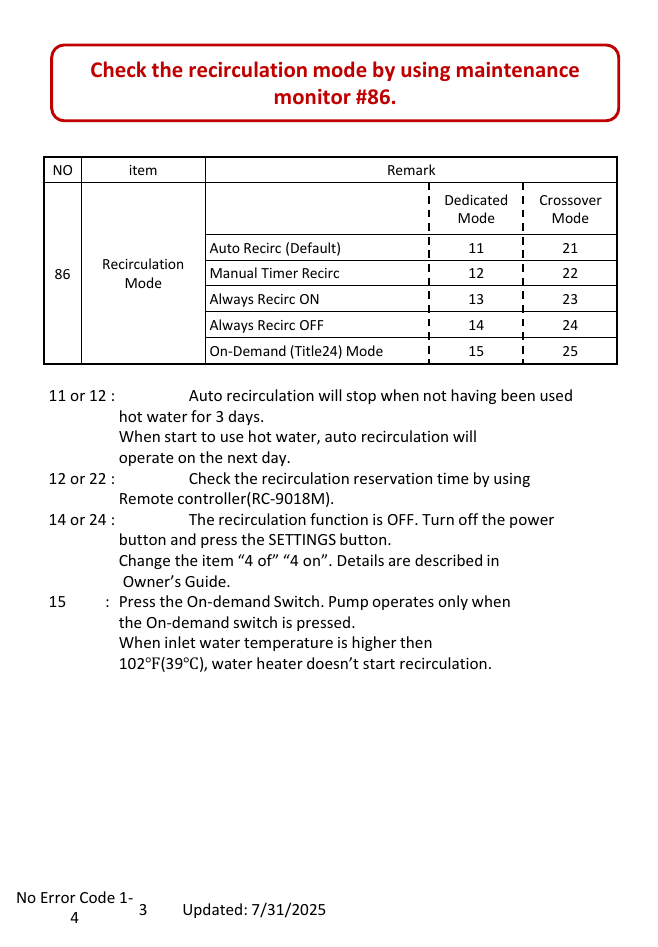

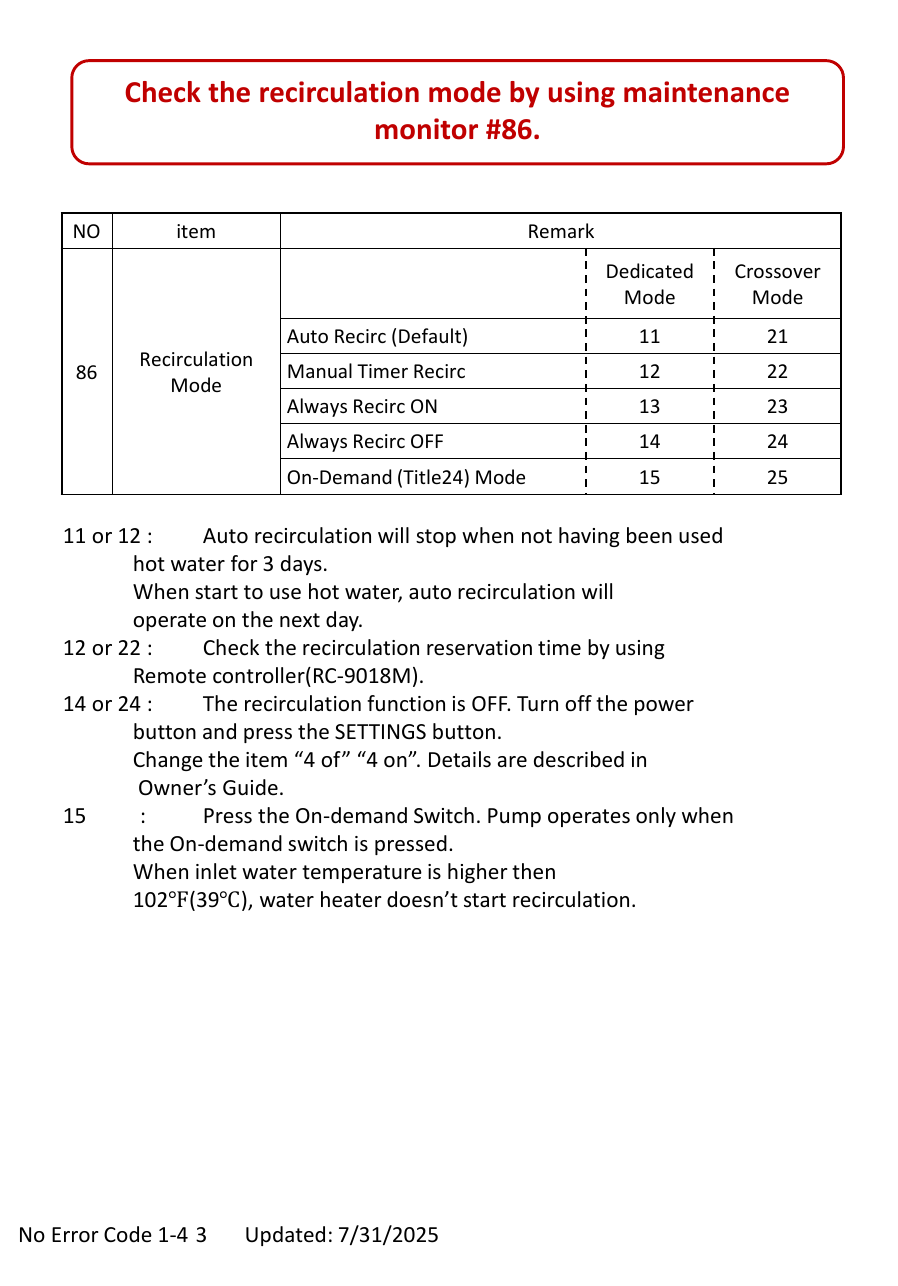

Step 3

Step 3

NEXT

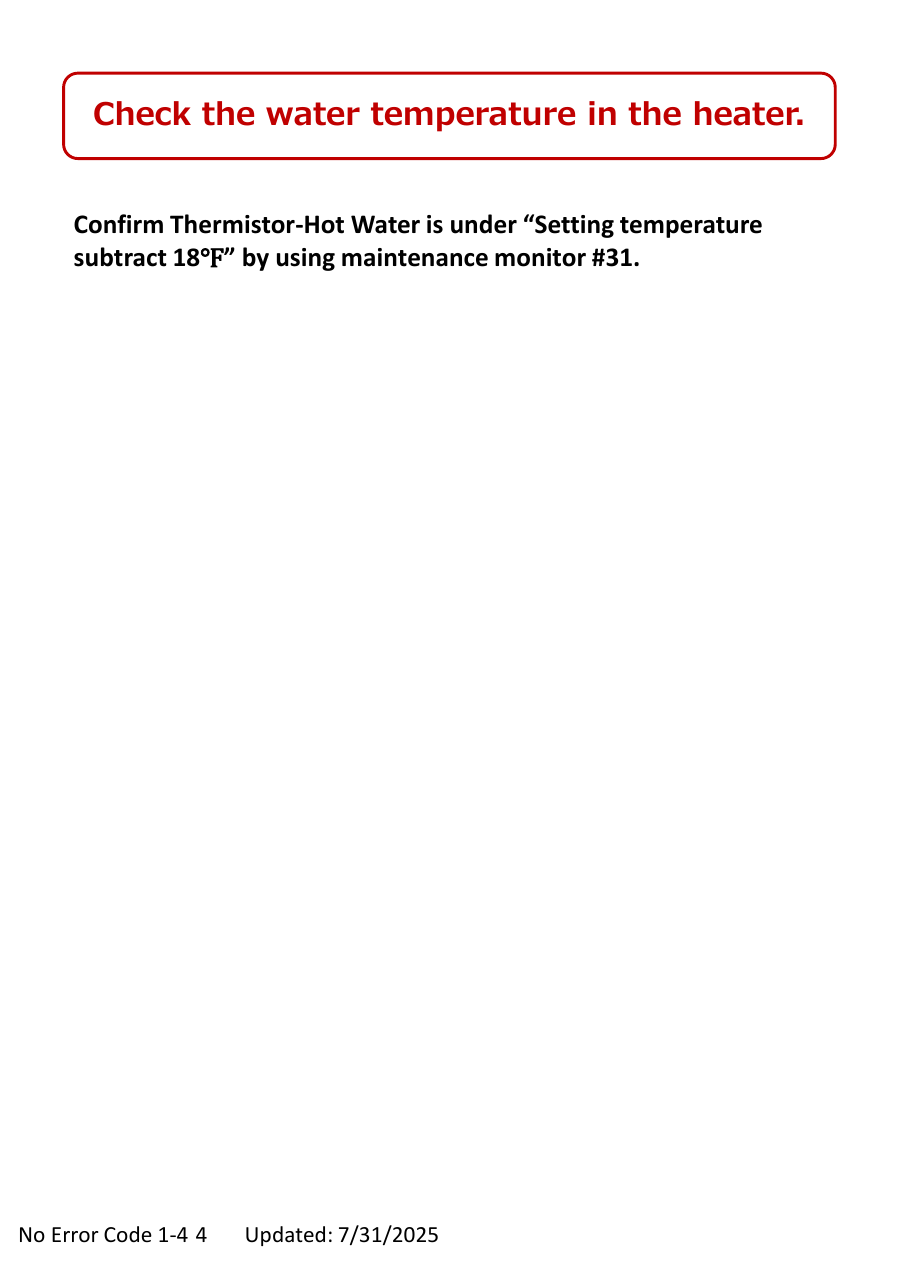

Step 4

Step 4

Yes No

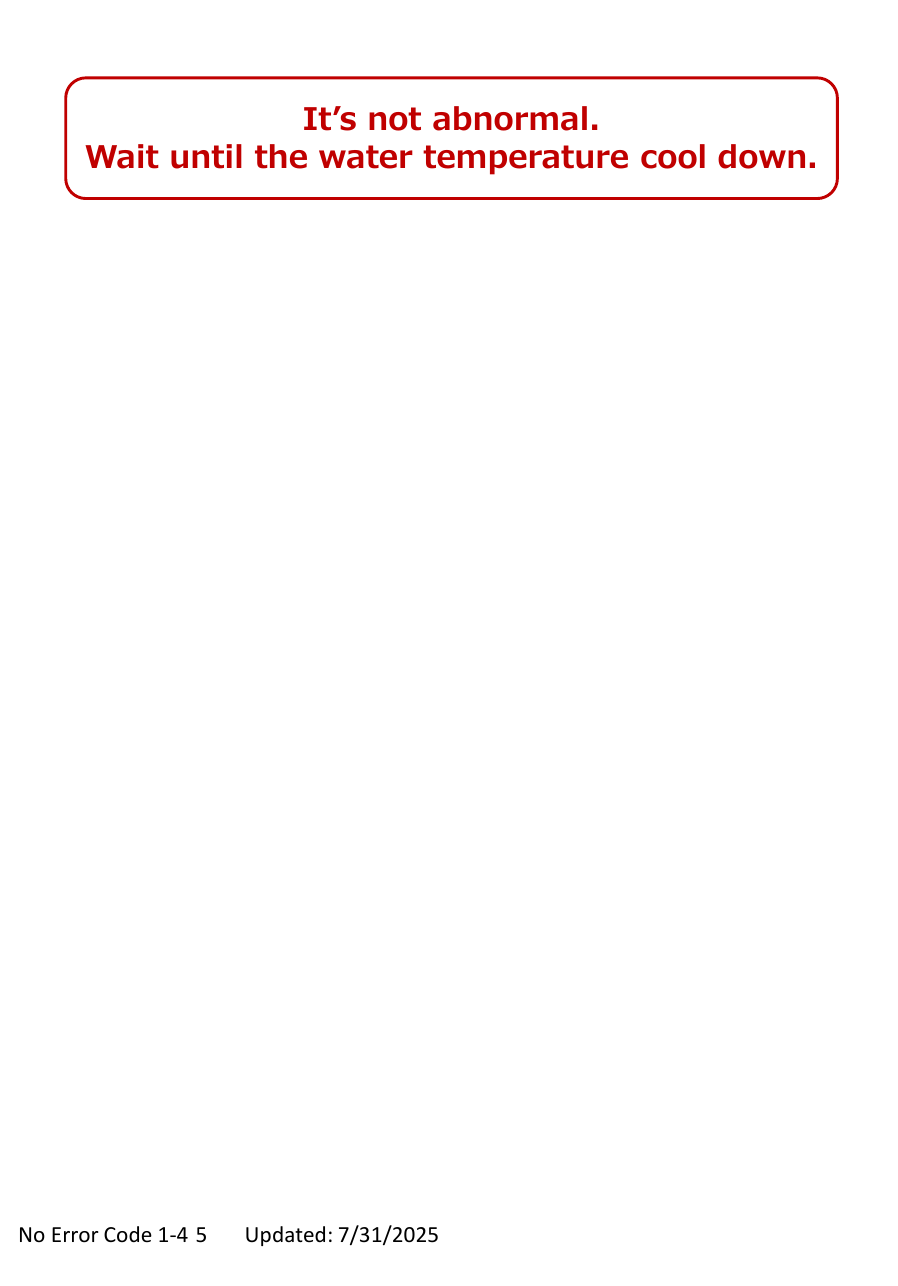

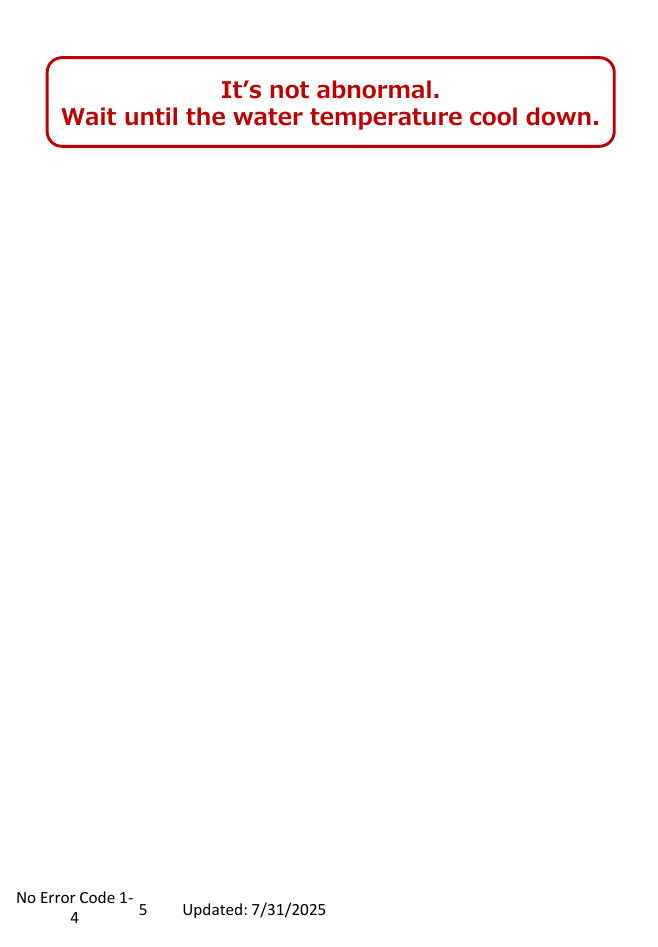

Step 5

Step 5

Return to Start

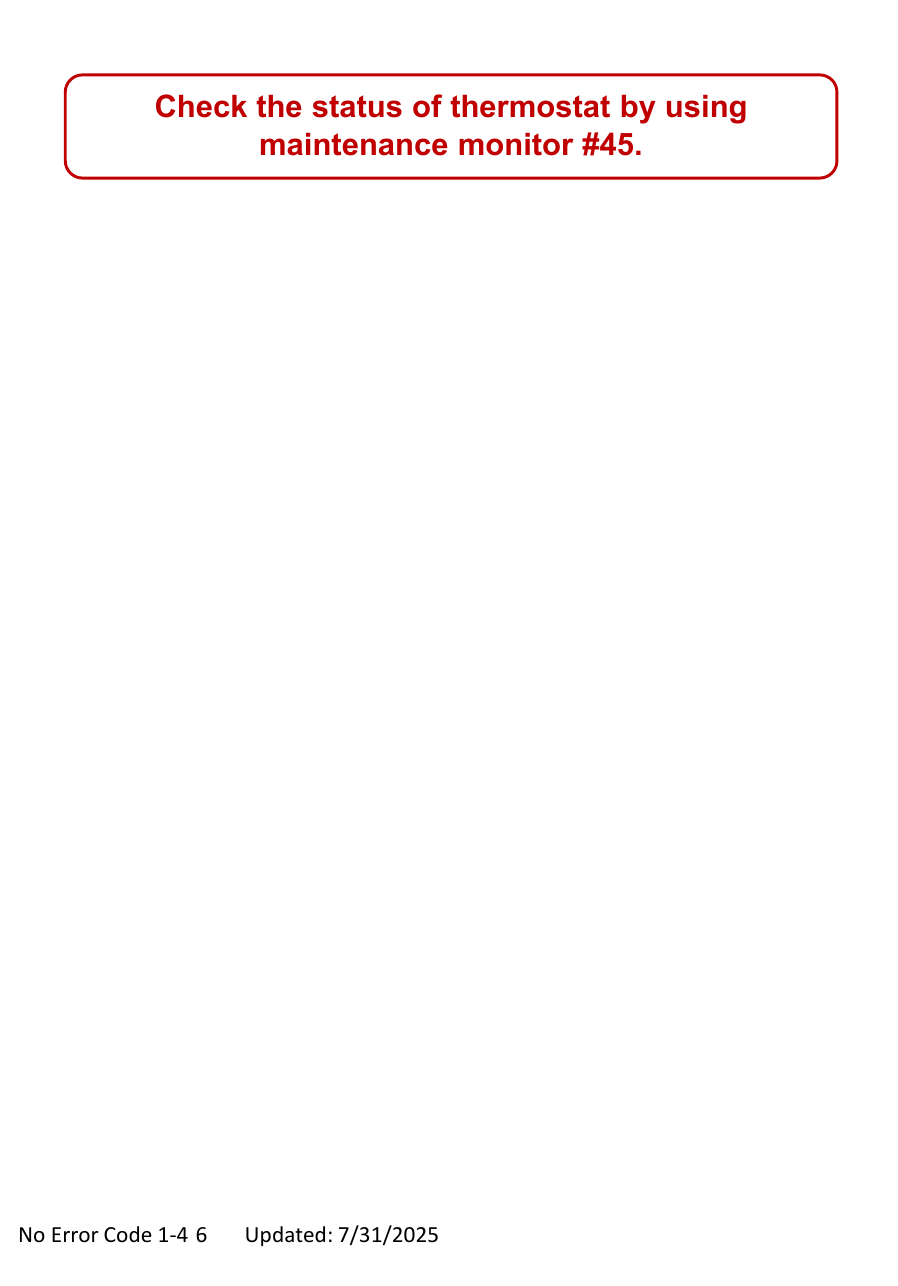

Step 6

Step 6

[1**] is shown (Circuit is clos ed) [0**] is shown (Circuit is open)

Step 7

Step 7

Return to Start

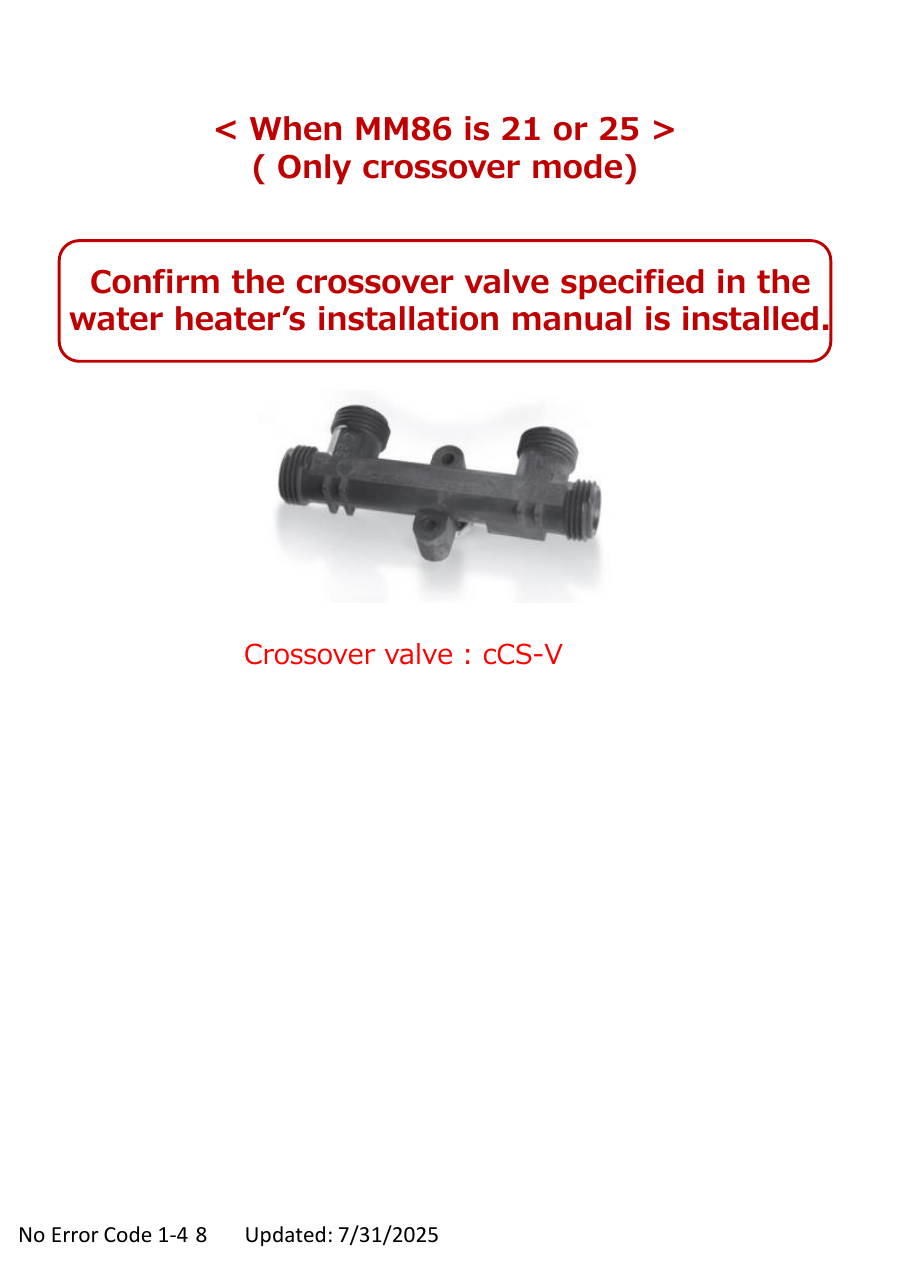

Step 8

Step 8

YES NO

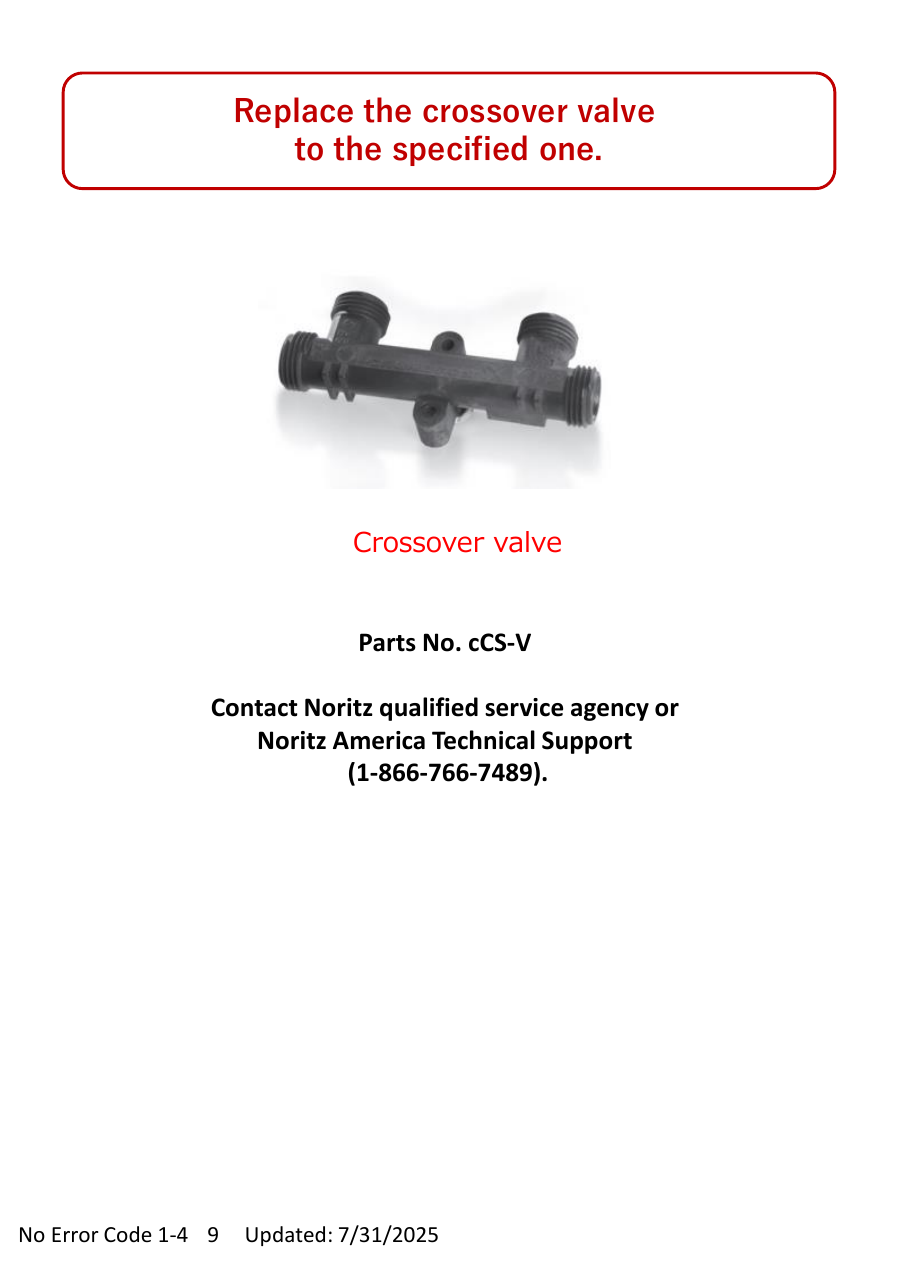

Step 9

Step 9

Return to Start

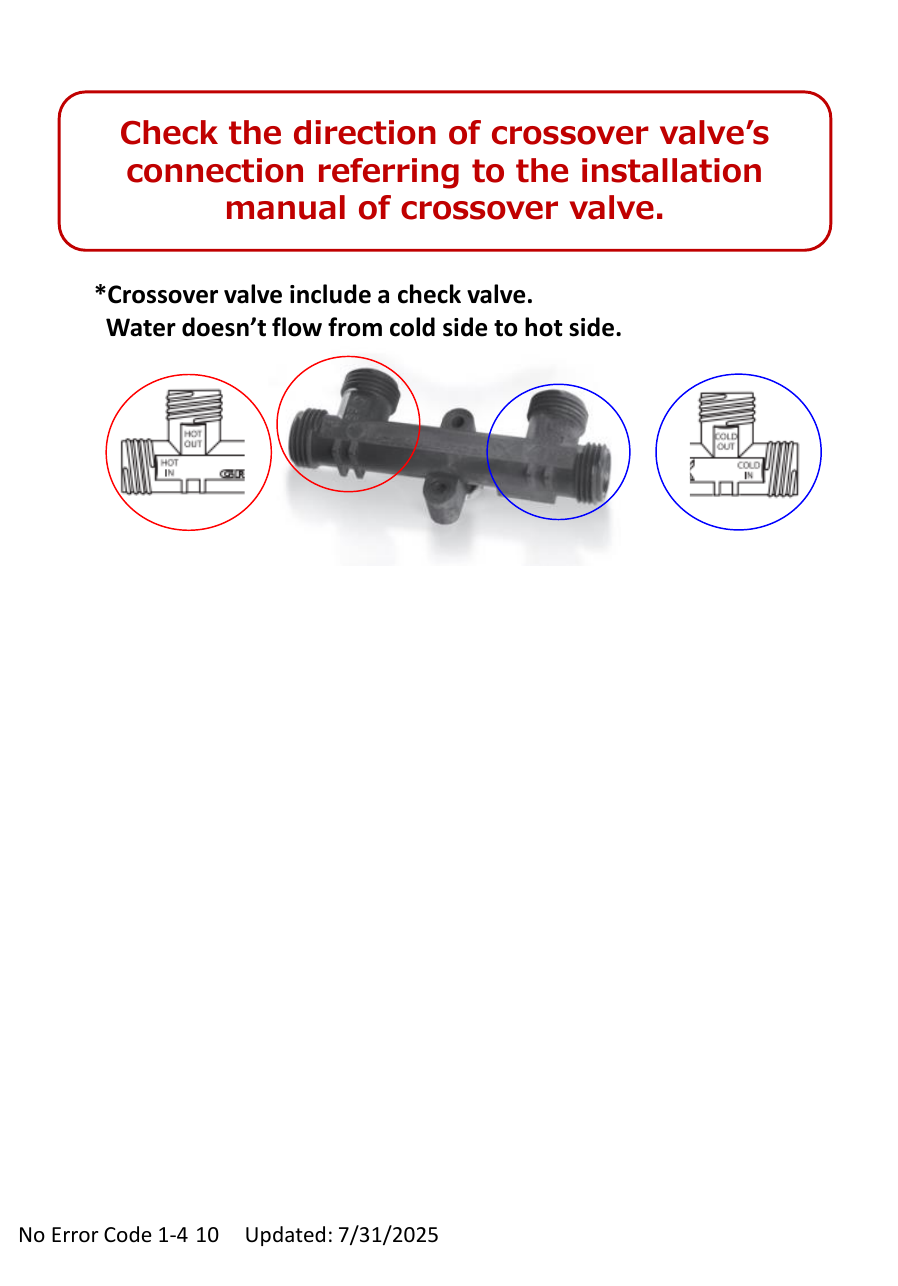

Step 10

Step 10

Normal Abnormal

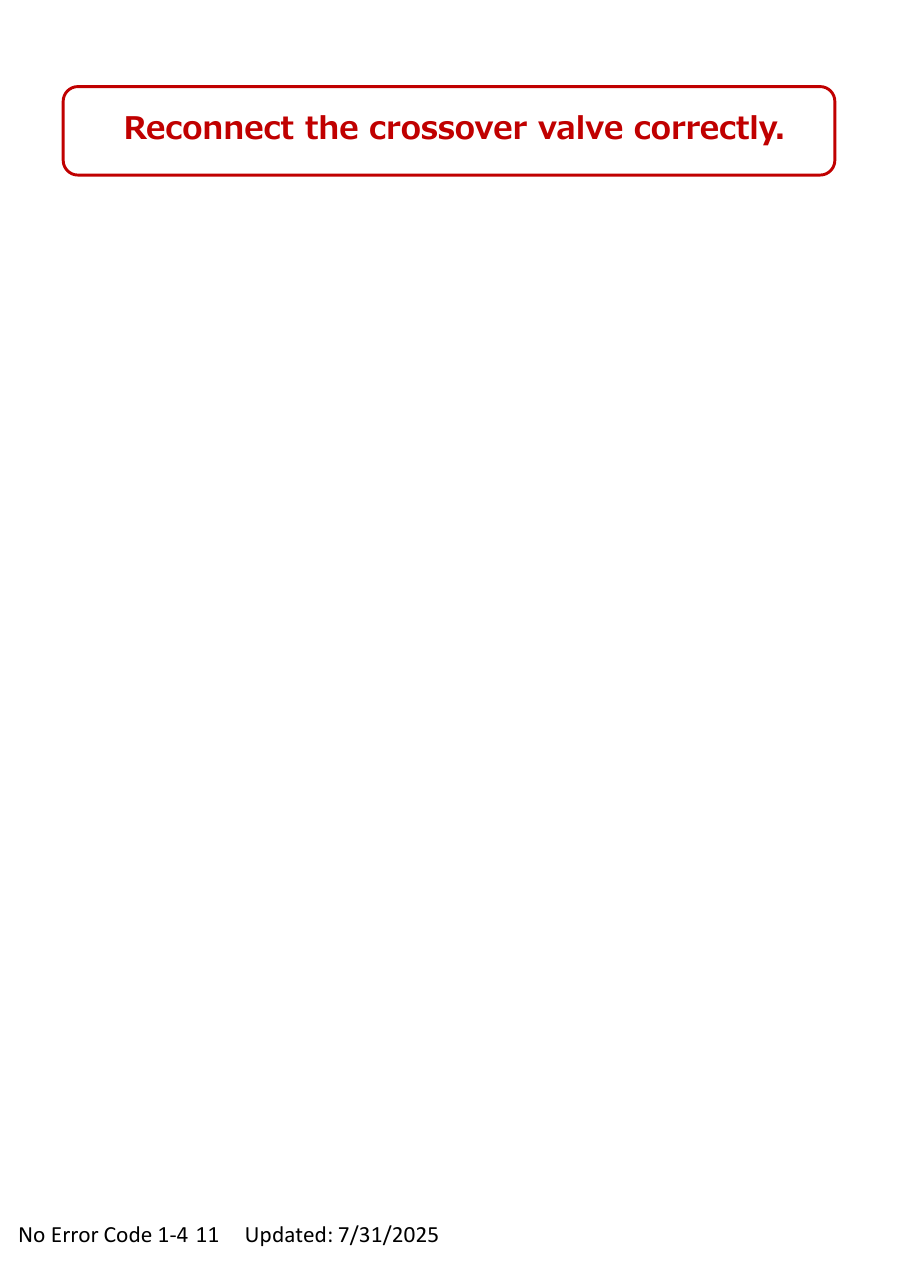

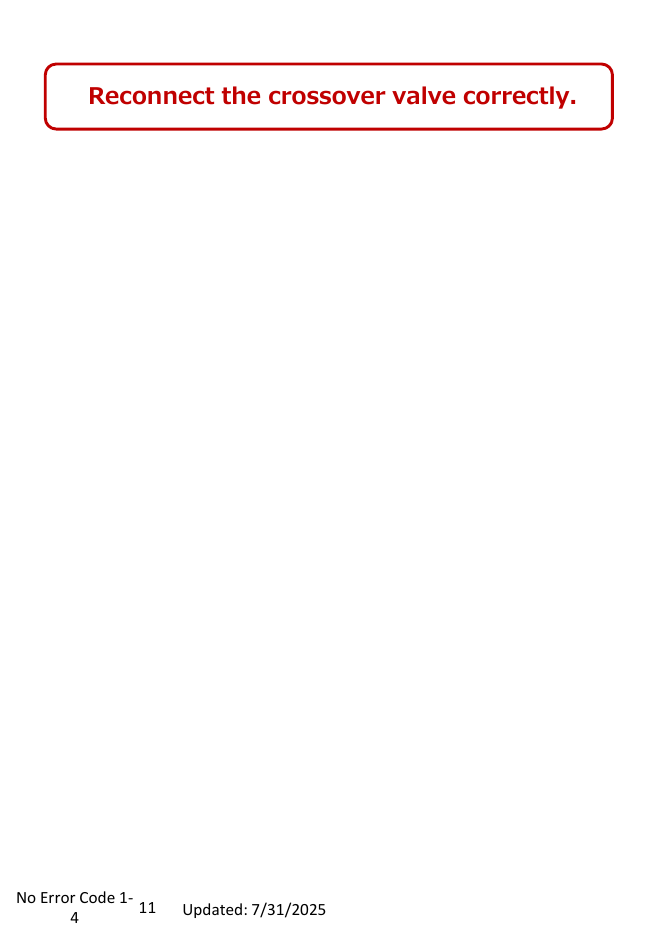

Step 11

Step 11

Return to Start

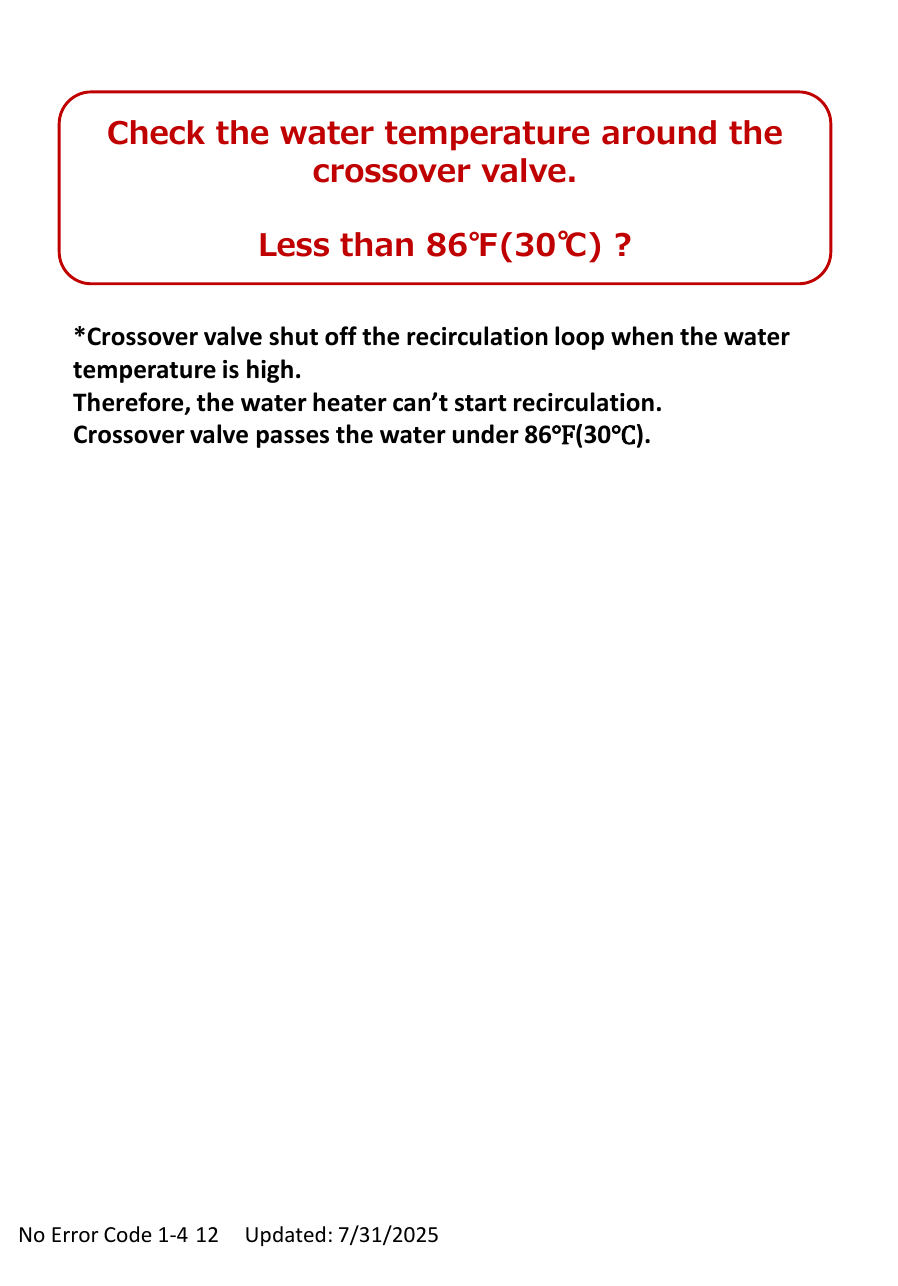

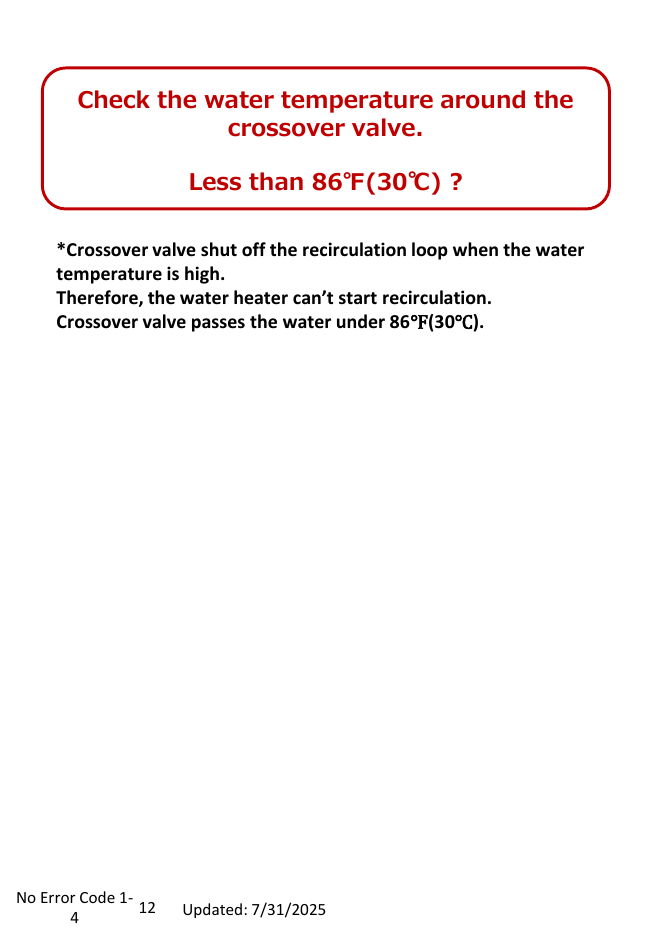

Step 12

Step 12

YES NO

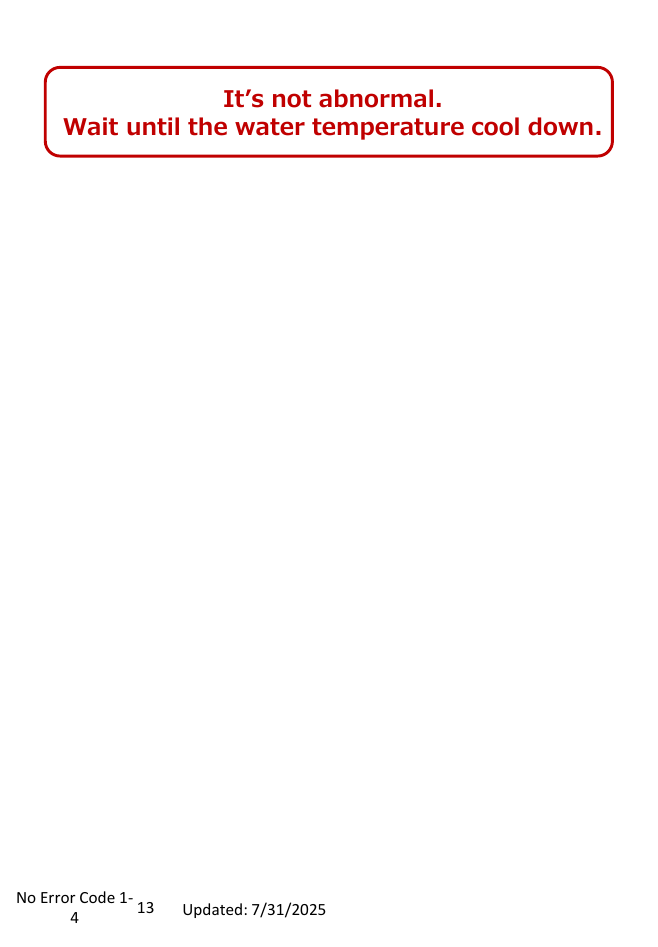

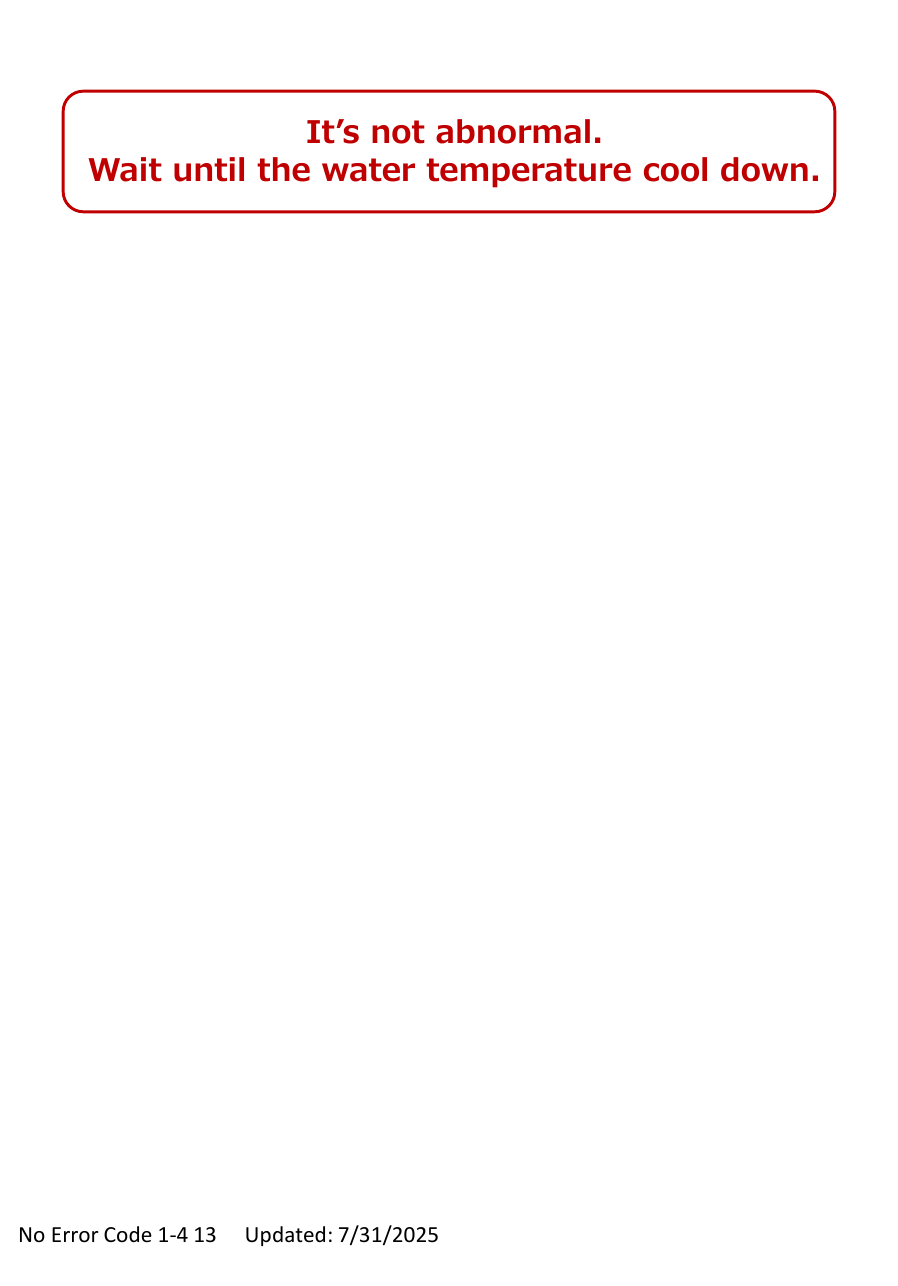

Step 13

Step 13

Return to Start

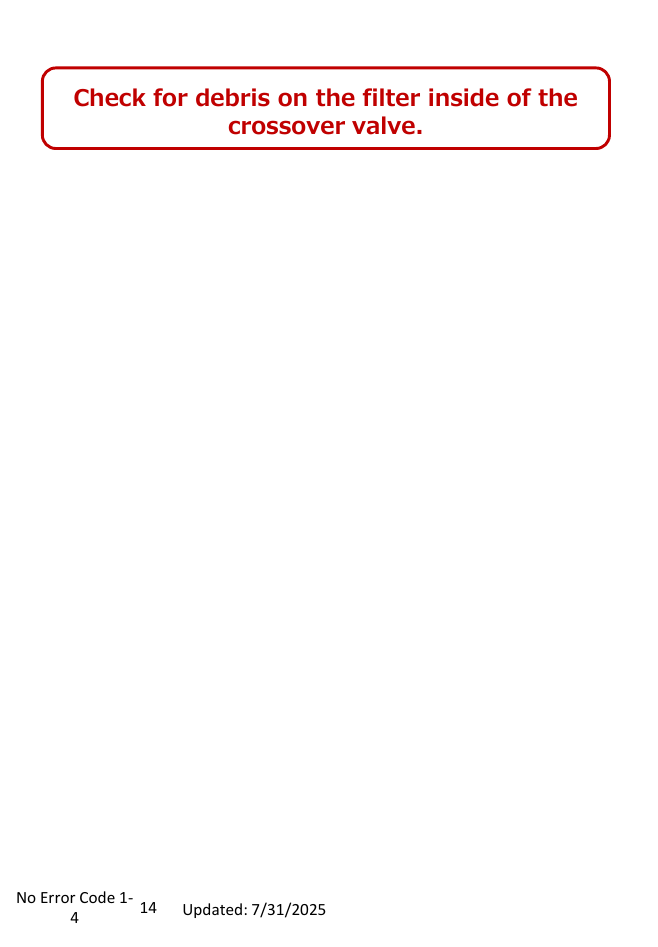

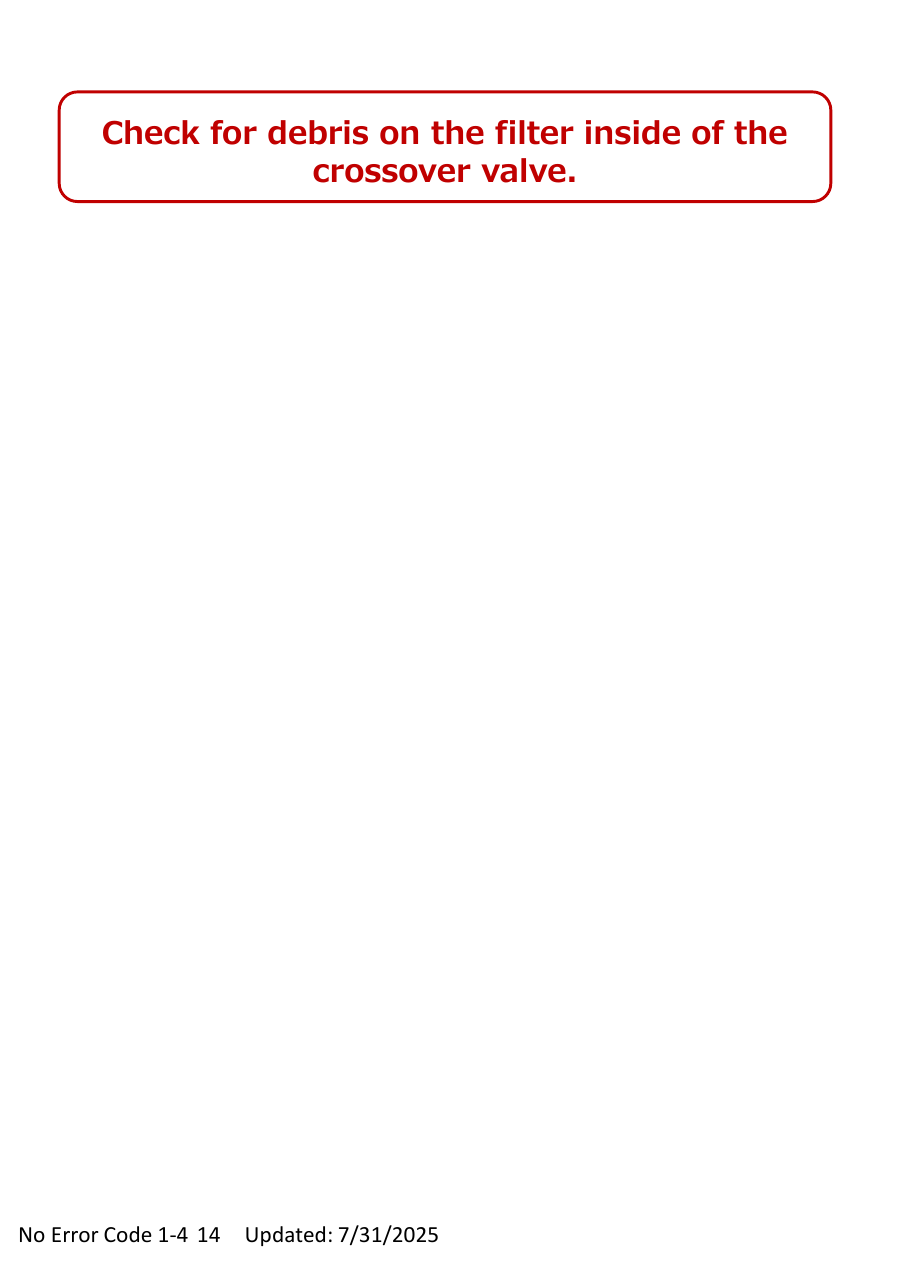

Step 14

Step 14

Normal Abnormal

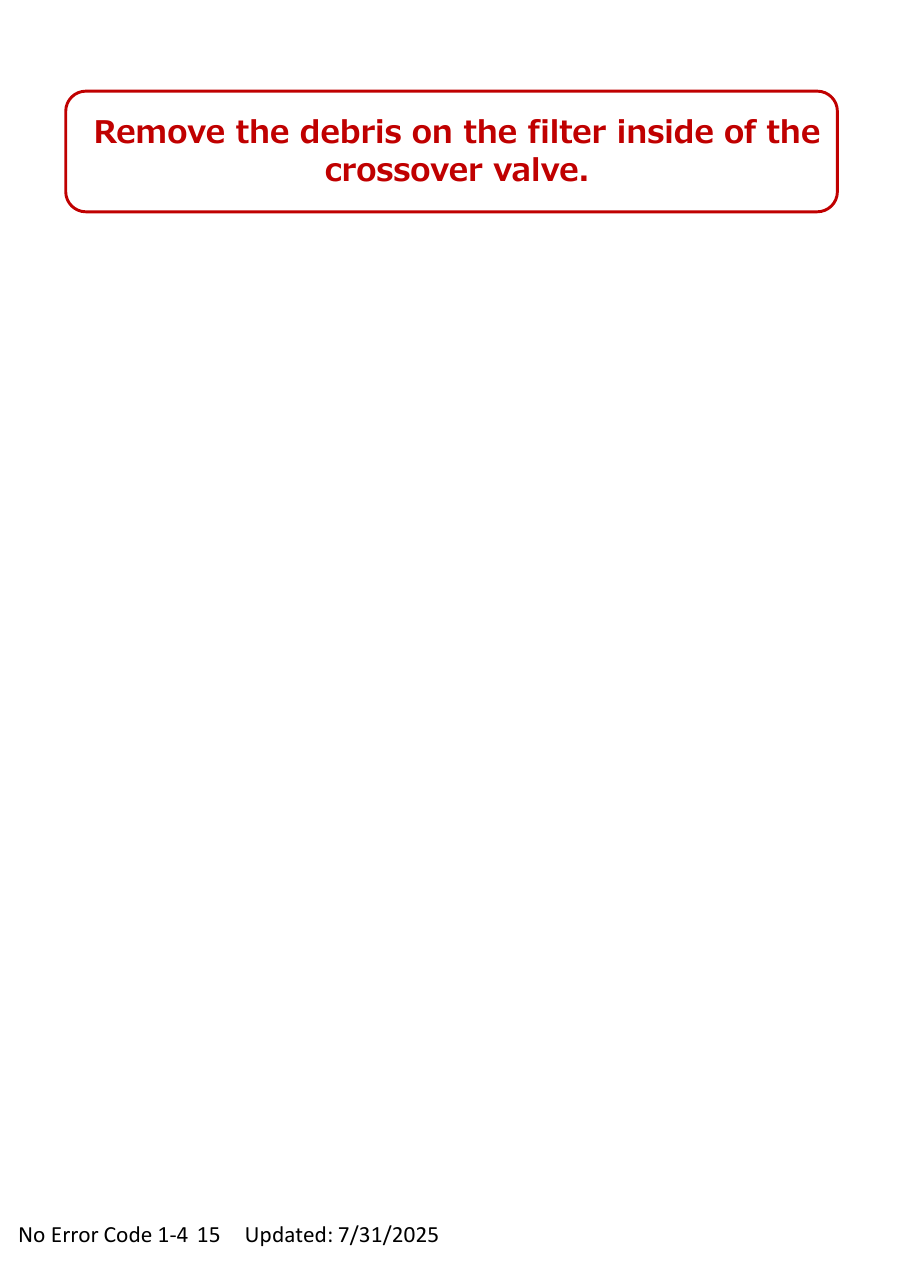

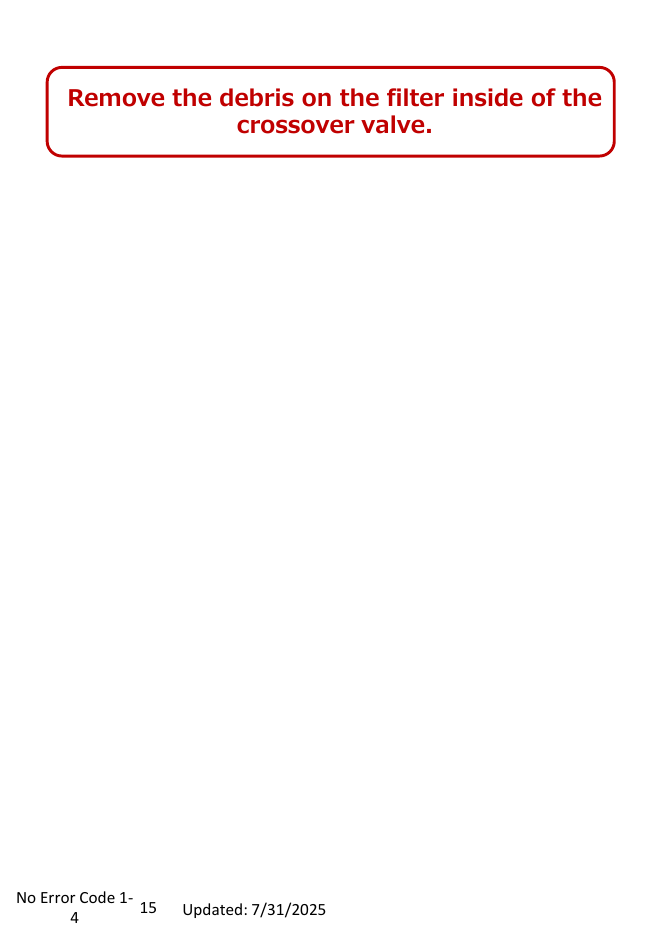

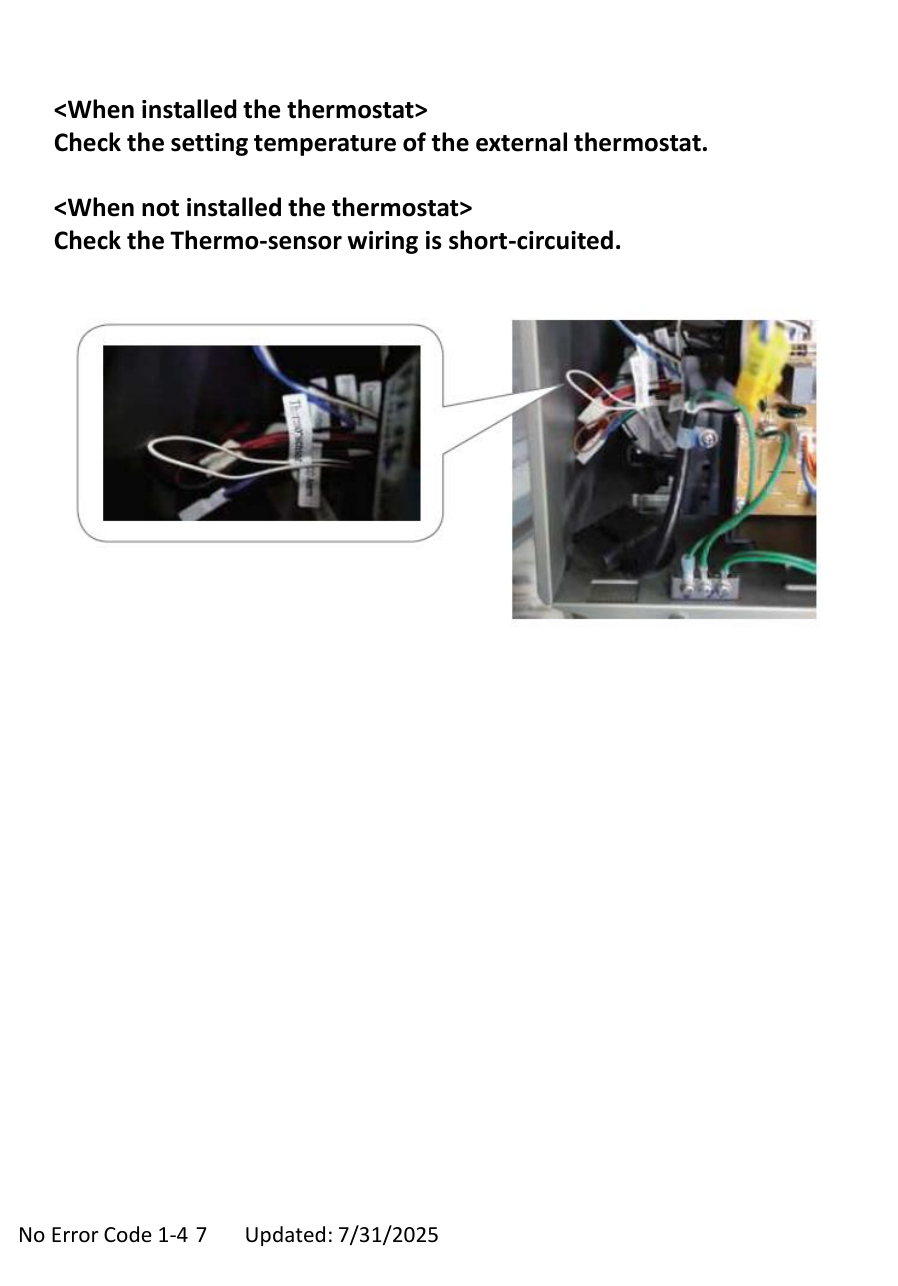

Step 15

Step 15

Return to Start

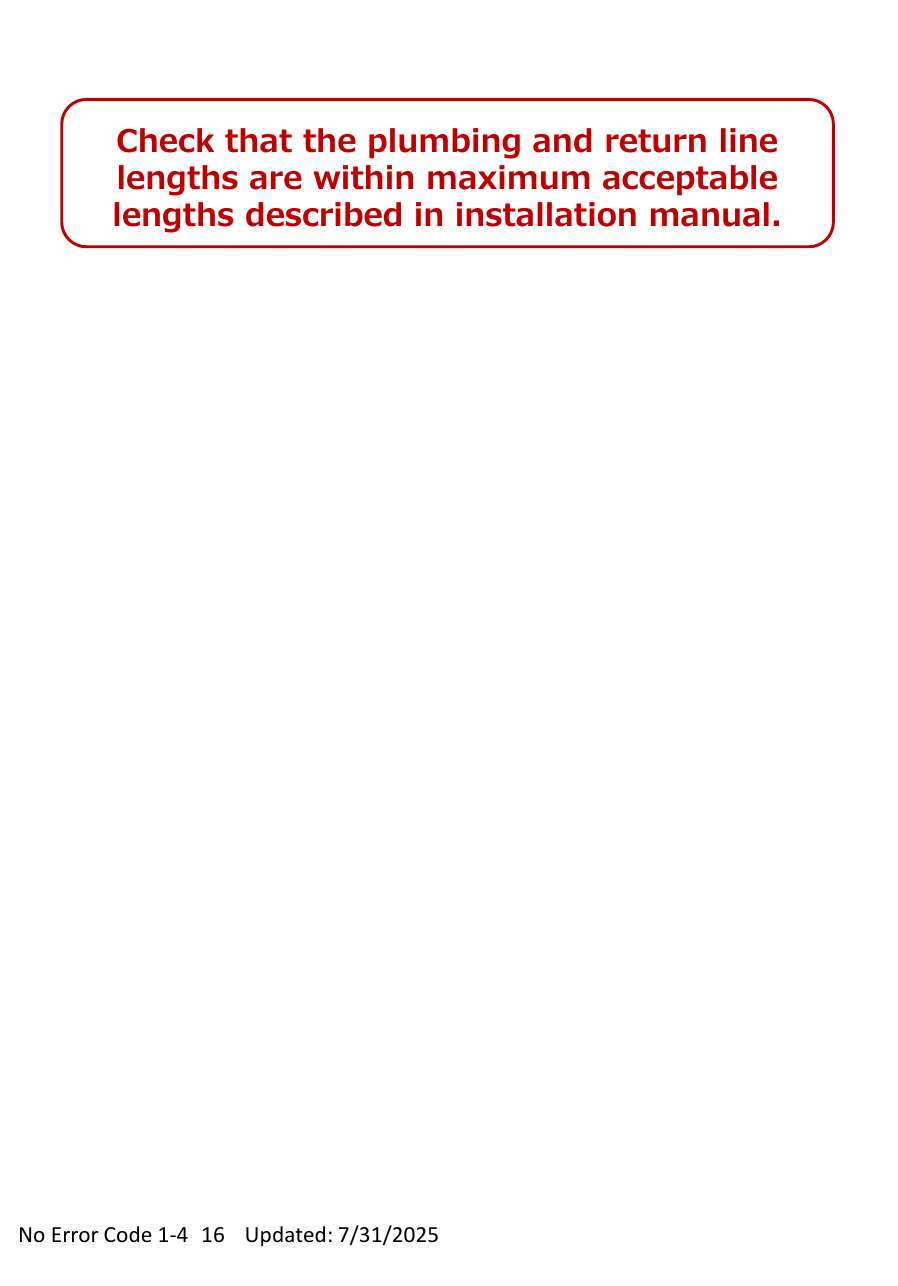

Step 16

Step 16

Normal Abnormal

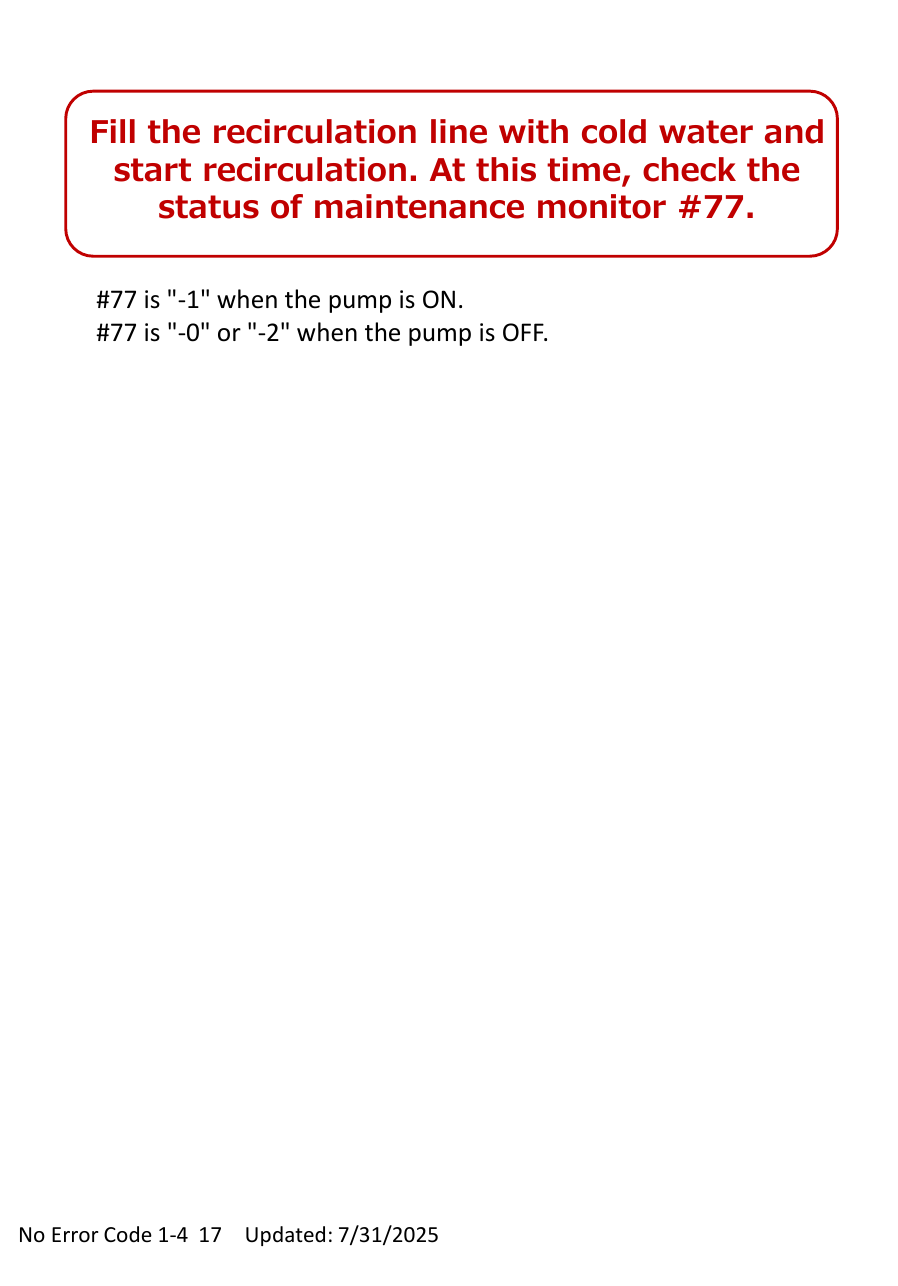

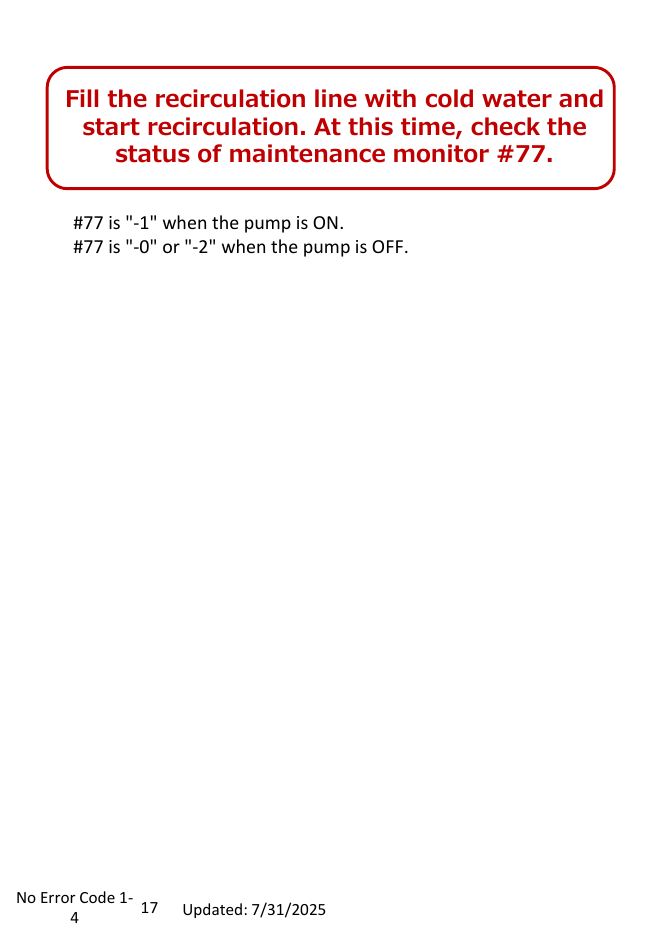

Step 17

Step 17

#77 is "-1" #77 is "-0" or "-2"

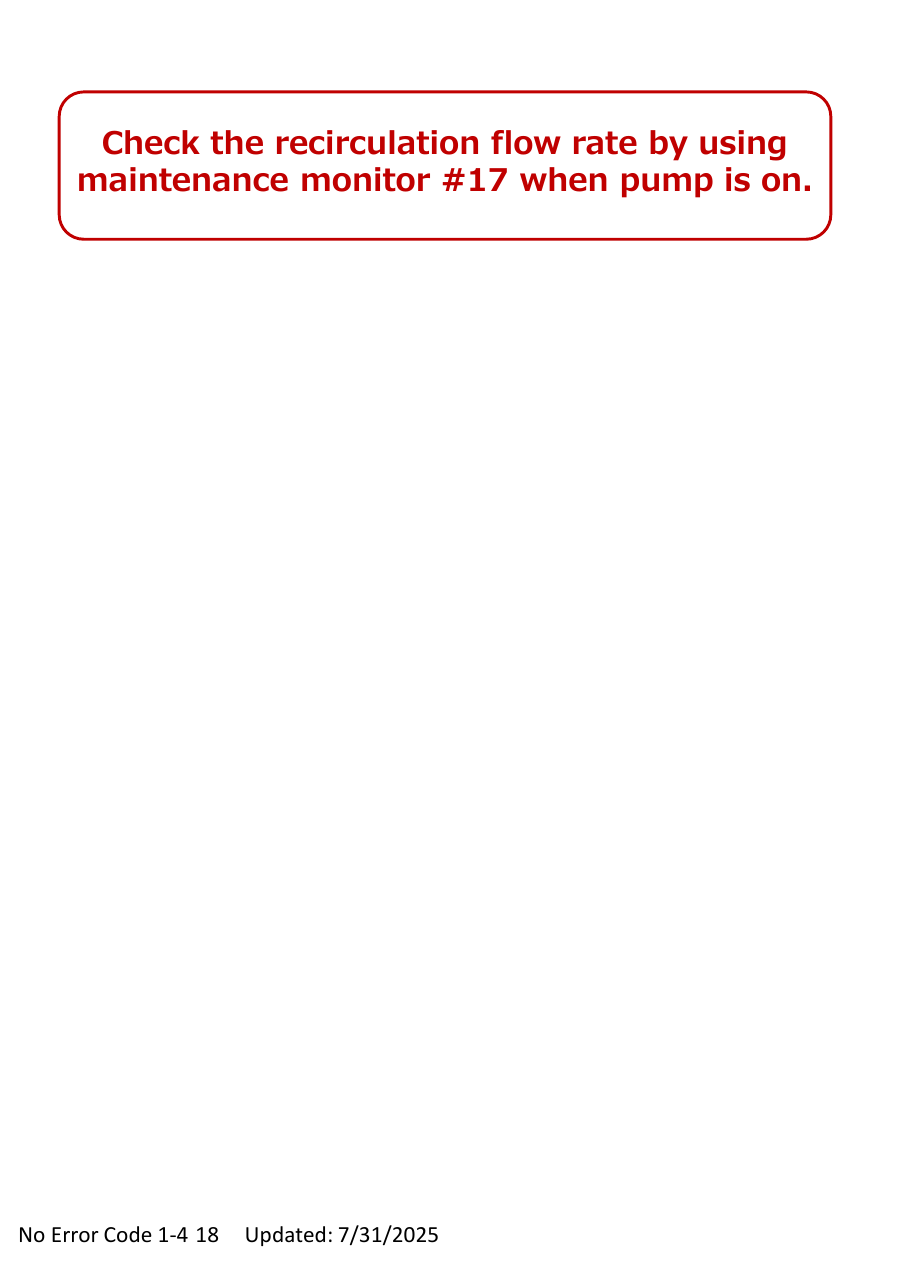

Step 18

Step 18

NEXT

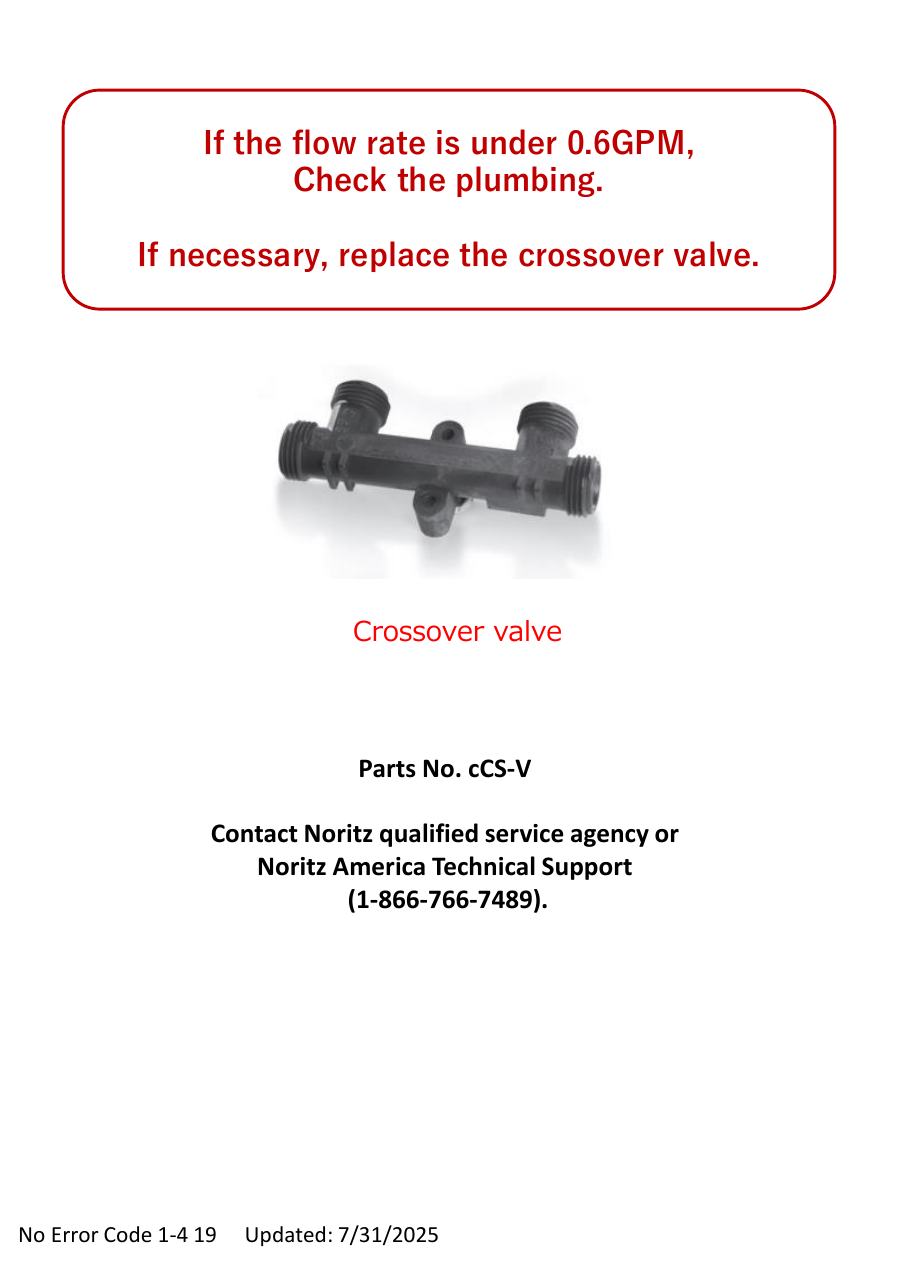

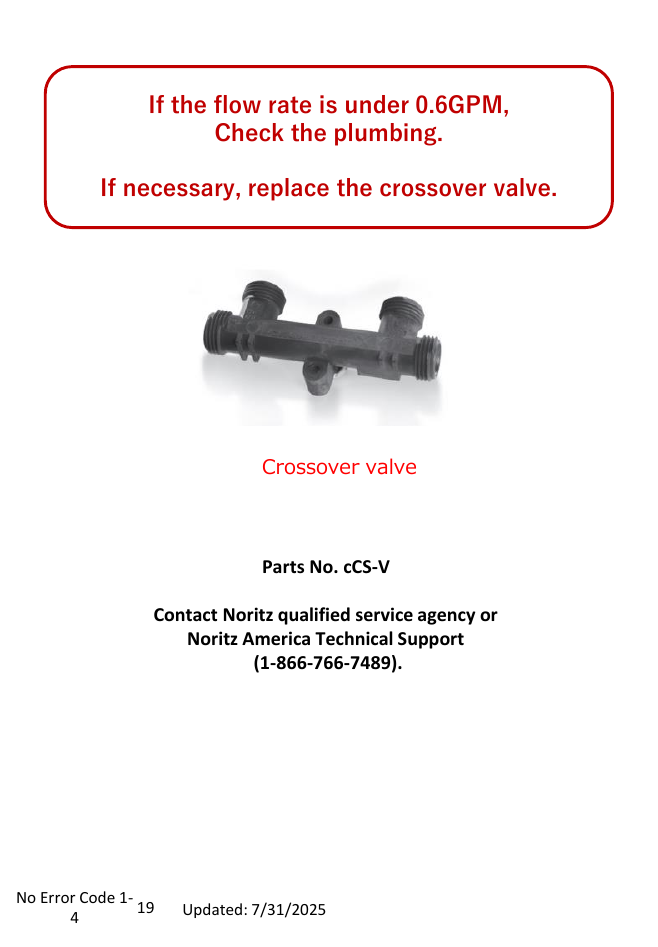

Step 19

Step 19

Return to Start

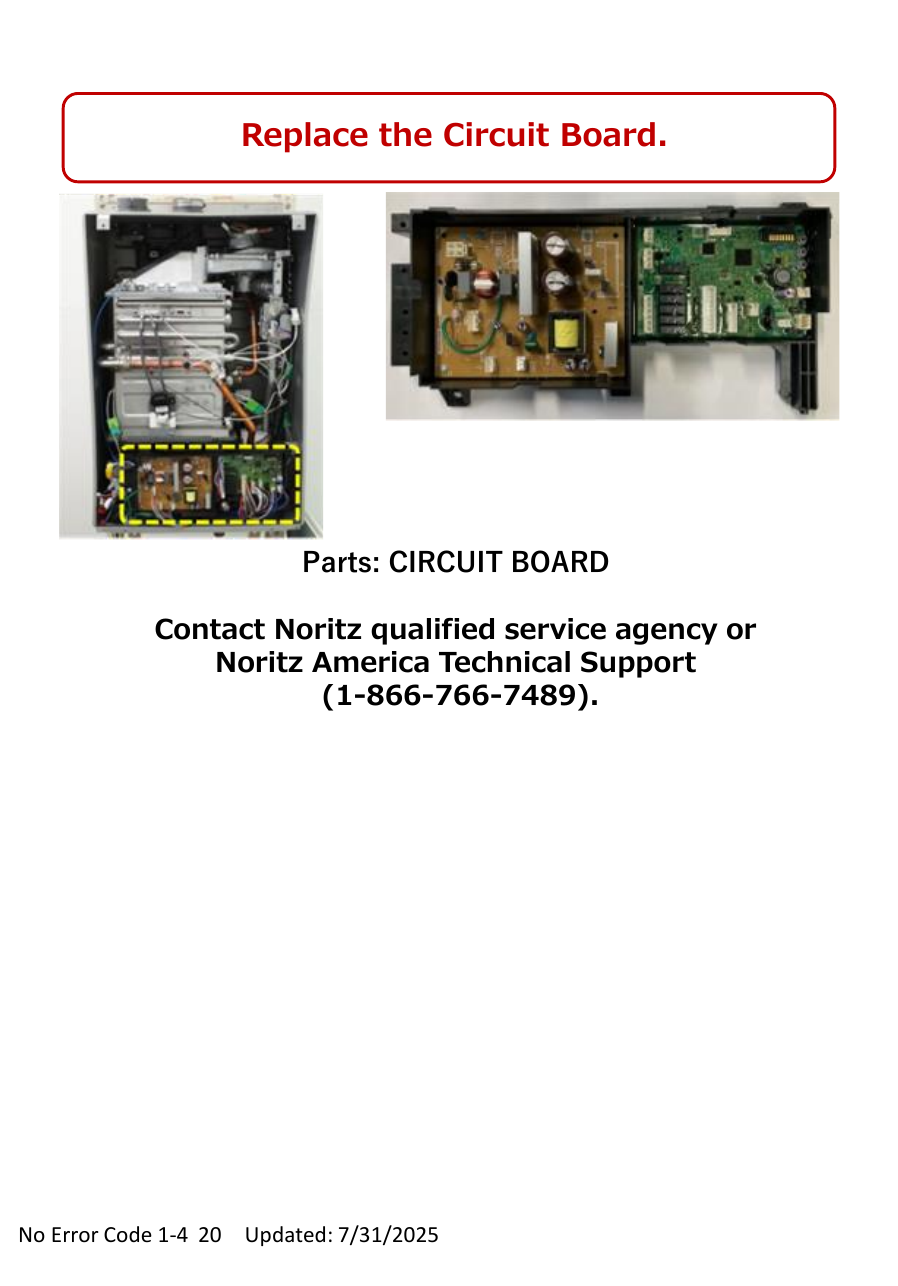

Step 20

Step 20

Return to Start

Step 1
